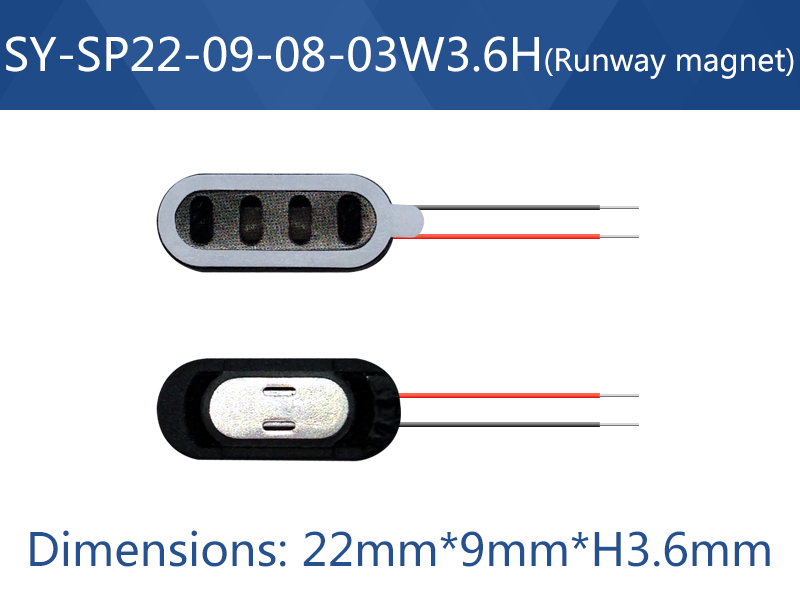

SY-SP22-09-08-03W3.6H
| Impedance(Ω): | 8±15% |
| Rated Power(W): | 0.8 |
| Resonance Frequency(Hz): | 1700±20% |
| Frequency Range(Hz): | Fo-20K |
| Sound Pressure Level(dB): | 77±3 0.1W/0.05m |
| Total Harmonic Distortion: | <10% |

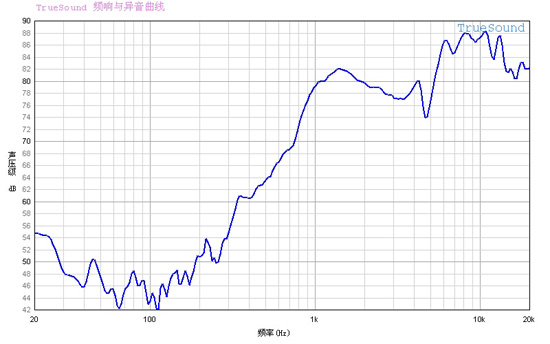

Frequency Response Curve
