Iron Speaker
(
The biggest advantage: sound big
)

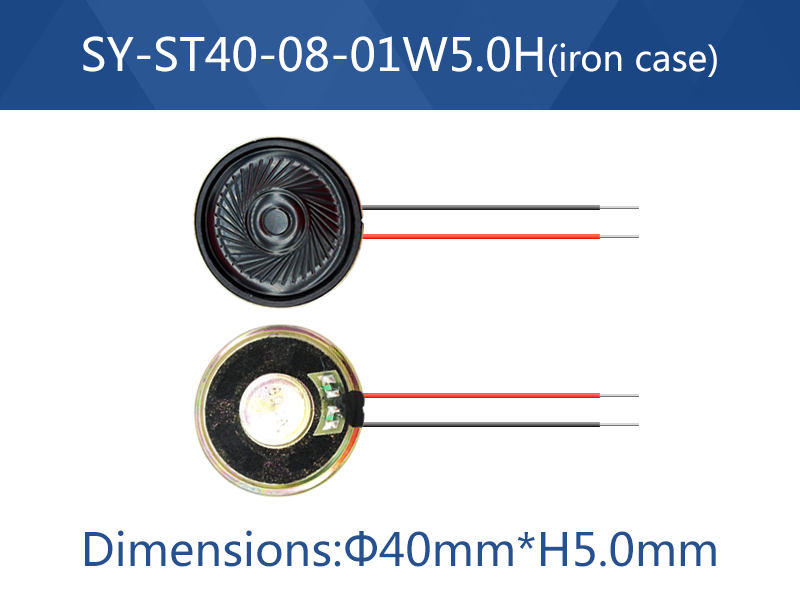

SY-ST40-08-01W5.0H
Impedance(Ω):
8±15%
Rated Power(W):
1
Resonance Frequency(Hz):
550±20%
Frequency Range(Hz):
Fo-20K
Sound Pressure Level(dB):
84±3 0.1W/0.05m
Total Harmonic Distortion:
<10%

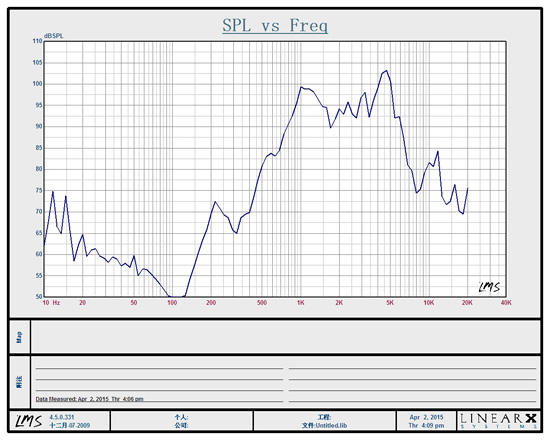

Frequency Response Curve
Upward:
SY-ST36-08-01W4.8H
Next:
SY-ST40-08-02W5.0H
