Buzzer（）

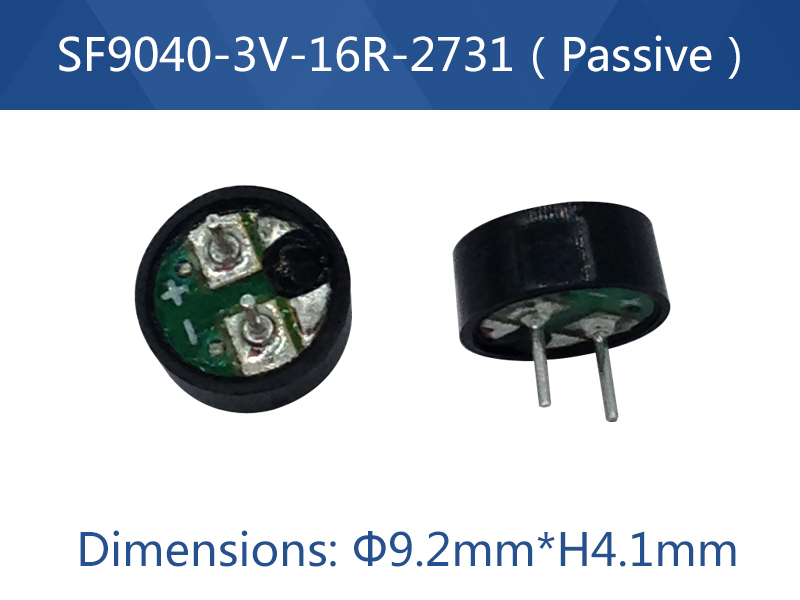

SF9040-3V-16R-2731 Passive

SPECIFICATIONS:

TYPEUNITQMT09A03
Min. Sound Output at 10cmdB85
Rated VoltageV0-p3
Operating VoltageV0-p2～4
Resonant FrequencyHz2730
Max. Current ConsumptionmA70
Coil ResistanceΩ16±2
Operating Temperature℃-20～+70
Storage Temperature℃-30～+80
Weightg0.7

Value applying at (rated voltage, 2730 Hz, 1/2 duty square wave)

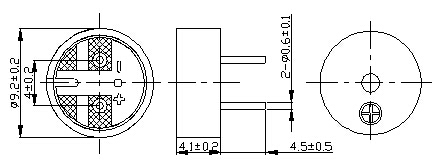

DIMENSIONS (Unit: mm):

FREQUENCY RESPONSE:

Upward：SF1295-12V-2300HZ Active
Next：SF9055-5V-40Ω-2731 Passive
